FIND YOUR TRACK SIZE "HOW TO MEASURE YOUR RUBBER TRACKS and STEEL TRACKS"
DO YOU NEED HELP DETERMINING THE SIZE OF YOUR RUBBER TRACKS or STEEL TRACKS?
DON'T WORRY! Please call 812.853.2583 if you have any questions. Also, if you do not know your track size or cannot find a track size stamped into the track, then you can take three easy measurements that will help you determine the track that you need:
STEP 1: Measure the width of the track (in millimeters/mm), then...
STEP 2: Measure the distance from the center of one link to the center of the next link (in millimeters/mm). This is also known as the pitch of the track, then...
STEP 3: Count the number# of links all the way around the track, then...
take Width x Pitch x Number# of Links= your track measurement.
For example, a Bobcat T300 Rubber Track measures 450x84x56 or 450x86x55. Some machines with Rubber Tracks will have several sizes that will work. Some manufacturers may increase the pitch and reduce the number of links or they may increase the number of links and decrease the pitch- this will depend on their engineering specifications. However, both tracks will work. Some machines can only accept one dedicated size track.

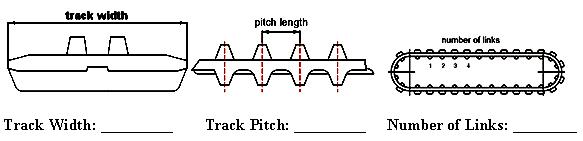

motiondynamics™ Rubber Tracks Measurement Guide

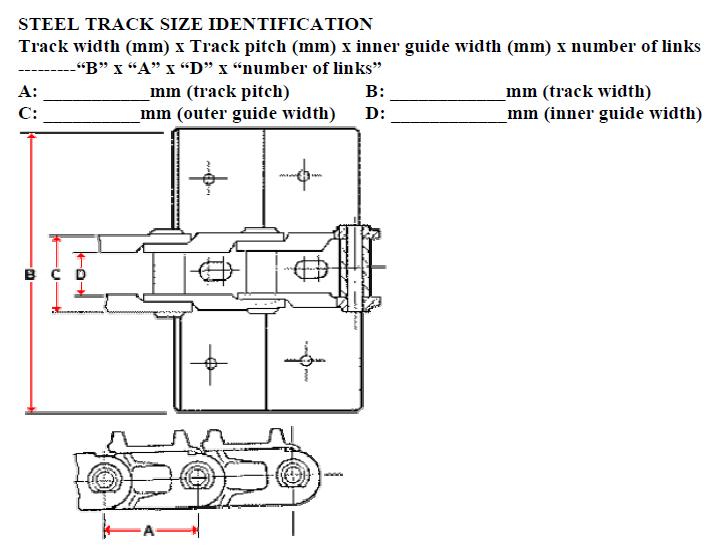

motiondynamics™ Steel_Track Measurement Guide
Download and use the Measurement Forms below to find your Rubber Track/Steel Track size and undercarriage measurements then fax us your measurements to ensure a proper fit for your new tracks at 312.416.0301:
To send us your exact track and undercarriage measurements to ensure a proper fit for your new steel tracks, download this form, print it out, fill out the measurements taken from your machine, and fax back to us at 312.416.0301
To send us your exact track and undercarriage measurements to ensure a proper fit for your new rubber tracks, download this form, print it out, fill out the measurements taken from your machine, and fax back to us at 312.416.0301
